Custom Gold Jewelry Steps

Dear customer, if you want custom gold jewelry, you need to talk to us about your idea, and we will turn your ideas into reality.
The types of gold jewelry you want to choose are pure gold, K gold, 3D hard gold, gold-plated jewelry, gold-rolled jewelry, and gold-filled jewelry.
Metal of your choice: Gold. If you do gold-plated, gold-covered, and gold-filled jewelry, choose other metals, such as silver and copper, as the main body.
The gold jewelry you want to choose are necklaces, rings, earrings, bracelets, pendants, brooches,
If you want to choose gems, please refer to our dedicated page on gems. If you make gem-set gold jewelry, we recommend choosing K gold as the main body because K gold has the advantages of good corrosion resistance, bright color, stable quality, and easy processing. The following is custom gold jewelry steps ; If you  want to customize and contact us.



1.Prepare the wax mold tree

We need prepare the wax mold tree that we already have.If you want to know how to make the wax mold tree,you can read my another article.

prepare the mold

2.Prepare the casting gypsum powder

Casting gypsum powder is mainly used in casting stainless steel, platinum, palladium, gold, silver, beryllium copper and silver jewelry casting. Gypsum mold high temperature resistance, can withstand 800℃ high temperature, mold is not easy to crack, effectively reduce the loss of precious metals.

prepare the Gypsum powder

3.Mix the gypsum power with water and poumed out the air

What proportion
1) Measure 1000 grams of gypsum powder
2) Measure water 380-400 ml (water temperature is required to be around 22℃)
3) Put the water into the container and add the plaster powder
4) Blend for 3.5 to 4 minutes
5) Pour into the steel cup, and then vacuum for 1.5 to 2 minutes
6) Let it sit flat for 60-120 minutes

mix gymsum powder with water and pumped out the air

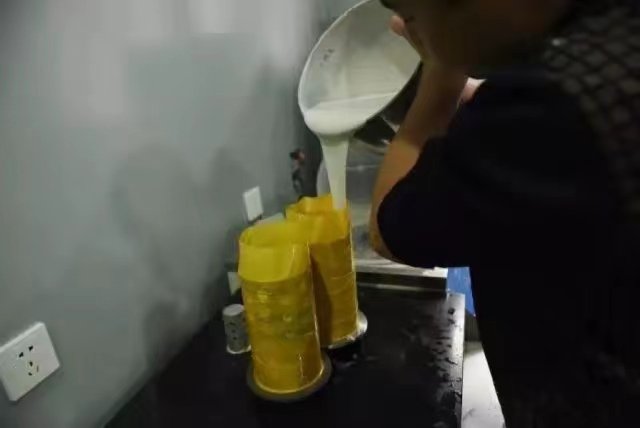

4.Pour the mix gypsum power into the container with wax mold tree

We need pour the mix gypsum power into the container with wax mold tree,in this process we need protect ourselves.

pour into the mix gypsum power

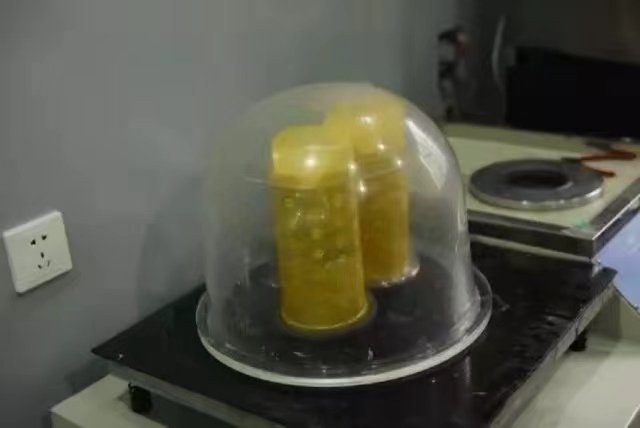

5.Continue vacuum treatment

When we pour the mix gypsum power into the container and the air also into it ,we all know the air will lead to a lot of holes,so we need to vacuum treatment.

29c9f9e7f052638e7c5de01d4a9279b

6.Remove the yellow tap

After a period of vacuum treatment, we observed that the gypsum powder had solidified. At this time, we needed to remove the container and take out the yellow tape on it.

remove the yellow tap

7.Apply high-temperature heating

Sintering:
1) The room temperature must be 120 minutes to 180 ° C, 150 minutes from 180 ° C to 270 ° C, and 150 minutes to maintain 270 ° C
2) The average heating time from 270℃ to 730℃ is 150 minutes
3) Keep at 730℃ for 180 minutes
4) Then drop back to about 630 ° C and start casting.

Apply high-temperature heating

8.Prepare raw material, pure gold

We need to prepare gold raw materials, and these gold raw materials are recycled, and we need to adhere to sustainable development.

pure gold

10.Melt the gold into liquid

There are many high-temperature equipment used to melt gold, such as: gold furnace, electric furnace, furnace, gold spray gun and gas gun, we can choose the equipment we are familiar with to melt gold.When we operate, we must pay attention to safety and take good safety measures

melt the gold

11.Pour the liquid gold into the container

We use tongs to take a container of cast gypsum powder out of a hot oven, place it on a special device, and then we begin to pour the melted gold into the container, as we come into contact with hot objects, we must take safety measures. Our factory is now operated by machines to avoid human harm.

pour the liquid gold into the container

12.Cooling treatment

After waiting for a period of time, take out the container for cooling treatment

cooling treatment

13.Clean with a high-pressure water gun and get the gold tree

The wax mold is heated to (850 — 1200 degrees) through a quartz crucible. The molten liquid gold is inverted to present a single ingredient suitable for processing gold ornaments.

gold tree

14.Pruning and beat and multiple polishing ,last QC

Cut off all the arms of the ring and all the arms of the bracelet. Because of all the components, the bracelet arm is the most stressed and worn area. After the inverted mold, the density of gold is not enough. It needs to be forged by a senior technician for a long time to change the thickness of gold to make it stronger and more durable.

Hammer first, and then polish with a file to make the gold jewelry more delicate and smooth. Then check the interior of the jewelry. Sandpaper all the dead corners, and use grinding needles, grinding wheels, disc grinding wheels, and other tools for fine grinding, further shaping. Much of the gold cannot recover in the forging process, which adds to the cost.

Grinding needle, grinding wheel, disc grinding wheel, and other tools for fine grinding. This process is generally impossible to see in gold production because the loss is enormous.

After polishing, all the products will be handed over to quality inspection, which is to check the fine artistry and check the purity of gold with imported nuclear element gold meter. The qualified products will be put into storage. The unqualified products will be returned to the factory for re-production.

pruning
beat

Note:Now we have replaced dangerous operations with machines
